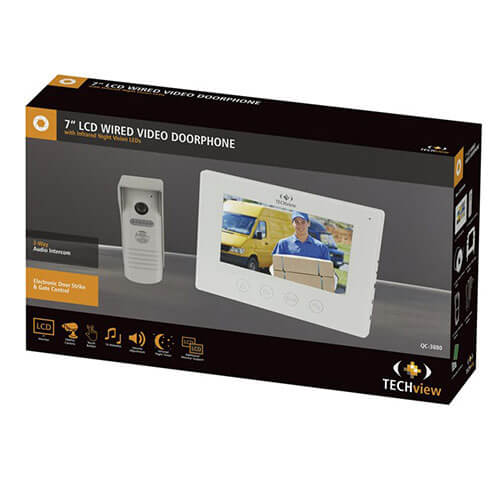

7" LCD Wired Video Doorphone System

Find out who's knocking before you open the door! The fantastic resolution from the camera and monitor puts the power at your fingertips, providing you with clear vision to identify visitors. Even at night, the night vision LEDs will help provide a clear picture regardless of ambient light. The camera is mounted into a strong, weatherproof alloy metal housing, for protection against damage. The monitor is a sleek wall-mounted light-touch button interface with a full colour 7"; screen. The system provides electronic door strike and gate control, as well as full talk-back to the outdoor unit. There is also a selection of 16 melodies to choose from when a visitor comes calling. Includes 20m of cable between the indoor and outdoor unit, but can be extended up to around 100m. Additional monitors (available separately) can be added to provide control from multiple parts of the house.

Box Contents:

• 1 x 7"; LCD Monitor
• 1 x Doorphone Camera
• 1 x 20m Video & Power Cable
• 1 x Monitor Mounting Bracket
• 1 x Camera Mounting Bracket
• 1 x Mains Power Adaptor
• 1 x Mounting Hardware

Features:

• Electronic Door Strike & Gate Unlock
• Adjustable Brightness & Contrast

• LCD: 7"; Touch Button
• Power Consumption: 580mA (Max)

• Image Sensor: 1/4"; CMOS
• Lens: 3.6mm
• Lens Angle: 46 Degrees
• Dimensions: 127(H) x 47(W) x 33(D)mm (Excluding Bracket)

Product Specifications

• Equipment Type : Video Doorphone
• Screen Type : Flat Panel Screen (LCD)
• Screen Width : 215.0mm
• Screen Height : 152.0mm
• Touch Screen : true
• IP Rating : 44
• Mains Connection Type : Mains AU/NZ 3 Pin
• Included PSU Rated for AU Mains : true
• PSU Powers : Display Screen
• DC Plugpack Voltage : 12.0V
• DC Current Draw : 1.1A
• Suitable PSU Included : true
• Type of Camera : Doorphone
• Included Lead Length : 20.0m
• In-built Microphone : true
• Lens Angle : 46.0 Degrees
• Vertical TV Lines : 700.0TVL
• Frame Rate : 25.0fps
• Infrared Enabled : true
• Infrared Range : 1.0m
• Number of LEDs : 6.0pc
• Horizontal Angle : 46.0 Degrees
• Extra Monitor : true
• Two Way Talk Function : true
• Chime Functions : 16
• Adjustable Chime Volume : true
• Door Latch Control : true
