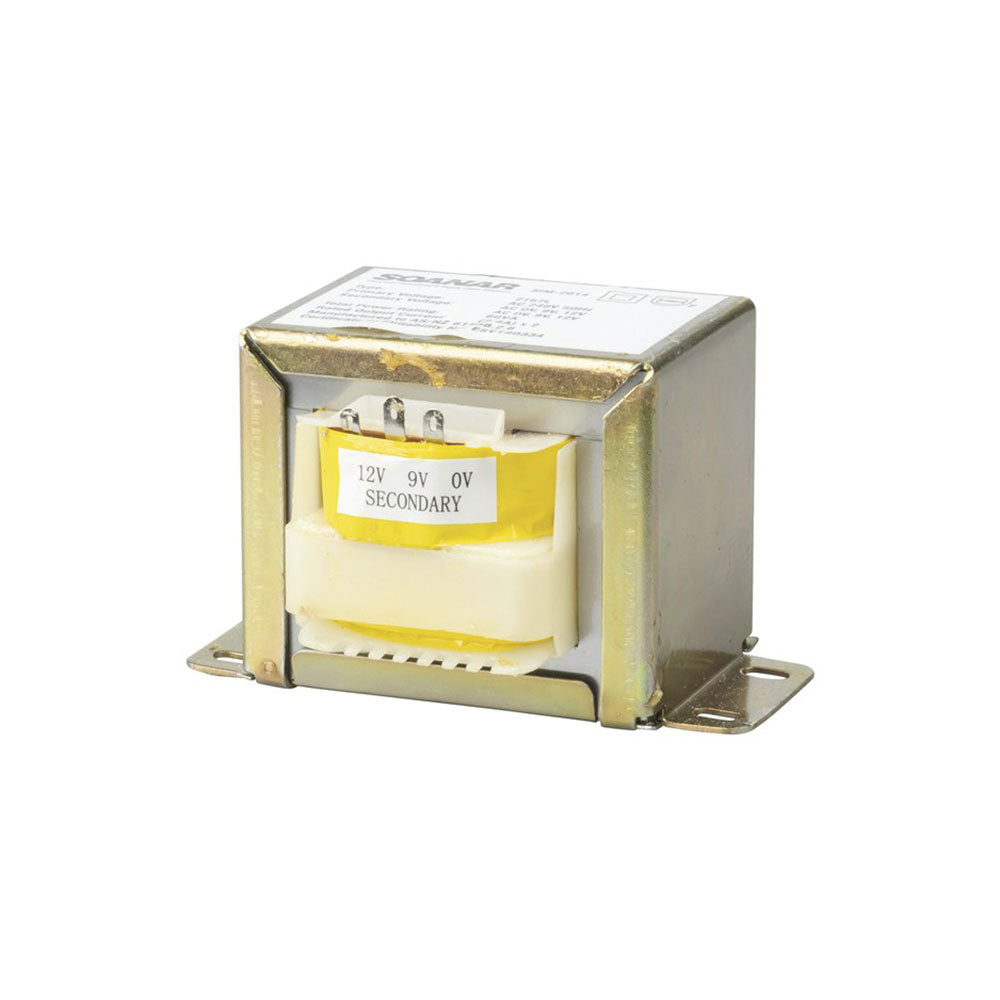

Traditional laminated iron core transformers suitable for new projects, hobby projects or as a replacement in existing equipment. They have a thermal fuse built into the primary winding for added safety and a wide variety is available to suit your specific needs.
Twin outputs may be wired in series to increase voltage or in parallel (in phase only) to increase current.
Product Specifications
- Primary Connection: 200mm Fly Leads
- Type of Transformer : Laminated Core
- Case Type : 2167
- Primary Winding Connection : Flyleads
- Secondary Winding Connection : Solder Tags
- Secondary Winding Configuration : Multi-tapped
- Temperature Rise Above Ambient at Rated Power : 65DegC
- Regulation : 10%
- Core Material : Laminated Iron
- Magnetising Current : 65mA
- AC current rating : 2.5A, 2.5A
- AC Voltage rating : 9V, 9V, 12V, 12V
- Weight : 1300g
- Mains Voltage Range : 240V
- Rated for AU Mains : true
- Max Input Power : 60VA
| Length : 10 cm |
Width : 7.5 cm |
| Height : 6 cm |
